HPA Series
AC Panel HPA-500S
Spesifikasi HPA-500S
| Mounting method | Top of the enclosure |
| Power consumption | 550W |
| Rated voltage | 1Ø 220V 50/60Hz |
| Rated current | 2.5A |
| Refrigerant | R-134a |
| Cooling capacity | 450/500Kcal/h(2000BTU) |
| Compressor | 0.15kW(1/5Hp) |
| Weight | 24Kg |
| Dimension | 350×443×180mm(WHD) |
Spesifikasi HPA-1000S
| Mounting method | Top of the enclosure |
| Power consumption | 900W |
| Rated voltage | 1Ø 220V 50/60Hz |
| Rated current | 4.1A |
| Refrigerant | R-134a |
| Cooling capacity | 4930/1000Kcal/h(4000BTU) |
| Compressor | 0.15kW(1/3Hp) |
| Weight | 36Kg |
| Dimension | 435×610×235mm(WHD) |
AC Panel HPA-1000S

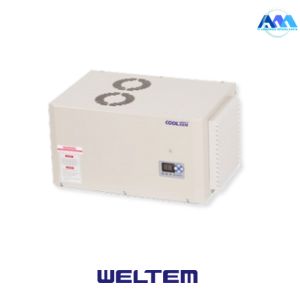

AC Panel HPA-500R
Spesifikasi HPA-500R
| Mounting method | Top of the enclosure |
| Power consumption | 550W |
| Rated voltage | 1Ø 220V 50/60Hz |
| Rated current | 2.5A |
| Refrigerant | R-134a |
| Cooling capacity | 450/500Kcal/h(2000BTU) |
| Compressor | 0.15kW(1/5Hp) |
| Weight | 25Kg |
| Dimension | 320×244×460mm(WHD) |
Spesifikasi HPA-500SE
| Mounting method | Top of the enclosure |
| Power consumption | 1144W |
| Rated voltage | 1Ø 220V 50/60Hz |
| Rated current | 5.2A |
| Refrigerant | R-134a |
| Cooling capacity | 450/500Kcal/h(2000BTU) |
| Compressor | 0.15kW(1/5Hp) |
| Weight | 27Kg |
| Dimension | 350×549×180mm(WHD) |
AC Panel HPA-500SE

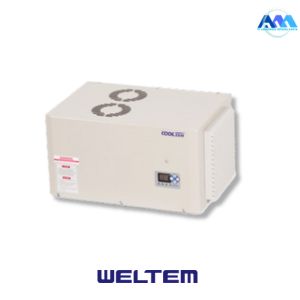

AC Panel HPA-1000R
Spesifikasi HPA-1000R
| Mounting method | Top of the enclosure |
| Power consumption | 900W |
| Rated voltage | 1Ø 220V 50/60Hz |
| Rated current | 4.1A |
| Refrigerant | R-134a |
| Cooling capacity | 930/1000Kcal/h(4000BTU) |
| Compressor | 0.25kW(1/3Hp) |
| Weight | 37Kg |
| Dimension | 438×267×508mm(WHD) |
Spesifikasi HPA-1000SE
| Mounting method | Top of the enclosure |
| Power consumption | 1496W |
| Rated voltage | 1Ø 220V 50/60Hz |
| Rated current | 6.8A |
| Refrigerant | R-134a |
| Cooling capacity | 930/1000Kcal/h(2000BTU) |
| Compressor | 0.25kW(1/3Hp) |
| Weight | 39.5Kg |
| Dimension | 435×716×235mm(WHD) |

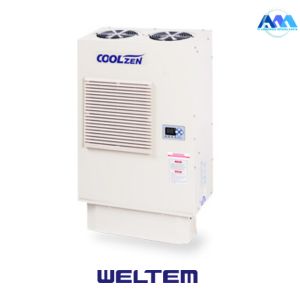

AC Panel HPA-1000SE
